您当前的位置：首页 > 产品中心 > 美国 > PEARSON >

PEARSON

Model	Shape	Output	HoleId.	Max.	Droop	Useable Rise	IT Max.	Max.	3dB pt.	3dB	I/f
(click for spec)	(see below table)	(volts/	(inches)	Peak	(%/msec.)	Time (nsec.)	(amp-sec.)	RMS	Low	pt. High	(peak
		amp)		Curr.				Curr.	(Hz)	(MHz)	amps
				(amps)				(amps)			/Hz)
2877	F	1	0.25	100	200	2	0.0004**	2.5	300	200	0.0025
4100	E	1	0.5	500	90	10	0.002**	5	140	35	0.006
2100	D	1	2	500	80	20	0.005**	7.5	125	20	0.017
6585	K	1	2	500	300	1.5	0.002**	10	400	250	0.008
6656	J	1	3.5	500	140	3.5	0.01**	10	200	120	0.04
3100*	C	1	3.5	500	40	50	0.03**	12	40	7	0.1
150	D	0.5	2	1,000	20	20	0.02**	15	40	20	0.07
6595	K	0.5	2	1,000	100	2.5	0.008**	20	100	200	0.03
325*	C	0.25	3.5	2,000	100	30	0.09	60	160	10	0.6
2878	F	0.1	0.25	400	20	5	0.004**	10	30	70	0.025
410	E	0.1	0.5	5,000	60	20	0.25	50	120	20	1.7
411	E	0.1	0.5	5,000	0.9	20	0.2**	50	1	20	0.6
3972	I	0.1	1	5000	1	20	0.2	50	1	20	0.6
110	D	0.1	2	5,000	0.8	20	0.5**	65	1	20	1.5
110A†	D	0.1	2	10,000	0.8	20	0.5**	65	1	20	1.5
6600	K	0.1	2	2,000	15	5	0.04**	40	25	120	0.12
310*	C	0.1	3.5	5,000	20	40	0.6	140	40	10	3.6
1010*	A	0.1	10.75	5,000	250	50	0.7**	120	400	7	4.4
1025	D	0.025	2	20,000	100	100	0.5	100	160	4	3
3025*	C	0.025	3.5	20,000	4	100	3	325	7	4	20
2879	F	0.01	0.25	2,000	2	20	0.04**	25	3	20	0.25
5046	E	0.01	0.5	25,000	0.3	20	0.5**	100	0.5	20	3
101	D	0.01	2	50,000	0.1	100	2.5**	200	0.25	4	12
4997	D	0.01	2	20,000	0.3	25	1.0**	150	0.5	15	3.5
301X*	C	0.01	3.5	50,000	3	200	22	400	5	2	140
1080*†	C	0.005	3.5	200,000	2	250	25	750	3	1.5	150
1330*	C	0.005	3.5	100,000	1	250	65	1400	0.9	1.5	400
4418	D	0.001	2	200,000	0.05	200	6.0**	400	0.7	2	40
1423*	C	0.001	3.5	500,000	0.7	500	75	2500	1	1.2	450
2093*	B	0.001	4.75	500,000	0.09	2000	1200	2500	0.15	0.2	7500

Model #	Shape	Output				Useable		Max.	3dB	3dB	I/f	I2t max
	(click to expand)	(Volts/	Hole Id.	Peak		Rise		RMS	pt.	pt.	(RMS	(Amps
		Amp)	(inches)	Curr.	Droop	Time	IT Max.	Curr.	Low	High	Amps	squared
				(Amps)	(%/µsec.)	(nsec.)	(Amp-sec.)	(Amps)	(Hz)	(MHz)	/Hz)	sec)
8585C	N	1	0.5	500	1	2	0.003	5	1,500	200	0.01	5
4100C	N	1	0.5	500	1	15	0.0015	5	1,500	25	0.008	150
8590C	M	1	1	500	0.7	2.5	0.002	5	1,000	150	0.01	25
7790	M	1	1	500	1	15	0.002	5	1,500	25	0.01	150
4688	L	1	2	500	0.4	12	0.005	15	600	30	0.03	150
8705C†	-	1	2	15	4	1	0.0006	4	1,500	400	0.002	0.02
7805	K	1	4	500	0.7	25	0.004	15	1,000	25	0.02	150
7760	J	1	6	500	0.5	50	0.005	20	750	7	0.03	350
5101	L	0.5	2	1,000	0.1	20	0.02	25	150	18	0.08	700
5949†	K	0.5	4	1,000	0.1	30	0.02	30	150	12	0.08	700

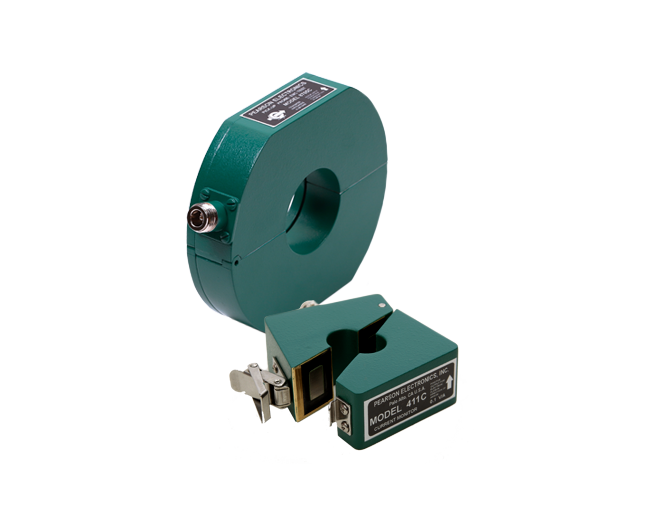

411C	N	0.1	0.5	5,000	0.015	20	0.15	50	25	20	0.7	18,000
7795	M	0.1	1	5,000	0.015	25	0.15	60	25	15	0.8	18,000
3525	L	0.1	2	5,000	0.004	25	0.5	100	6	15	2.5	18,000
7810	K	0.1	4	5,000	0.007	50	0.4	150	10	7	2	18,000
7655	J	0.1	6	5,000	0.007	100	0.4	175	10	4	2	35,000
5008C	N	0.01	0.5	50,000	0.005	150	1	150	7.5	3	4.2	250,000
7800	M	0.01	1	50,000	0.003	175	0.8	125	5	2	4	140,000
4160	L	0.01	2	50,000	0.001	200	2.5	300	1.5	2	15	1,000,000
7815	K	0.01	4	50,000	0.001	200	3	400	1.5	2	15	2,000,000
7450	J	0.01	6	50,000	0.001	250	3	400	1.5	1.5	12	2,000,000
5664	L	0.001	2	200,000	0.00025	250	8	500	0.4	1.5	50	1,000,000

Model #	Output	Hole Id.			Useable		Max.	3dB	3dB	I/f
	(Volts/	(inches)	Peak		Rise		RMS	pt.	pt.	(peak
	Amp)		Curr.	Droop	Time	IT Max.	Curr.	Low	High	Amps
			(Amps)	(%/msec.)	(nsec.)	(Amp-sec.)	(Amps)	(Hz)	(MHz)	/Hz)
5753	10	2	50	700	150	0.0005	4	1,000	3	0.004
5834	10	2	50	300	350	0.001	4	500	1	0.006
8600	10	2	10	35,000	3	0.00005	1	45,000	125	0.00007
2854	1	5	500	40	15	0.04	5	30	20	3.5
7737	1	10.75	500	500	40	0.006	35	750	9	0.003
8181	1	1	500	80	15	0.002	5	125	20	0.014
8122	1	2	500	4	400	0.1	40	6	1	0.6
6027	1	Coaxial	100	200	2	0.0004	2.5	300	200	0.0025
8440	1	3.5	500	3	350	0.25	75	4	1	1.5
804	0.1	2	5,000	50	20	0.5	75	30	20	3.5
804R	0.1	2	5,000	12	20	0.6	75	20	20	3.5
8611	0.1	4	5,000	1.5	40	0.5	140	2	10	3
3363	0.1	5	5,000	90	40	1	150	120	10	7.5
3382	0.1	15	1,000	50	80	1.5	250	100	4	10
4285	0.1	10.75	5,000	1.5	50	0.4	300	2	7	5.7
5011	0.1	0.25	400	20	5	0.004	10	30	70	0.025
5673	0.1	2	5,000	100	9	0.15	100	150	40	1.1
8365	0.1	0.25	400	7	20	0.004	10	10	20	0.025
8606	0.05	10.75	10,000	0.5	75	3	600	1	5	21.2
2811A	0.02	0.5	1,000	1	500	6	150	1.5	0.7	40
8535	0.01	1	25,000	0.3	25	0.6	120	0.5	15	4
4191	0.01	4	50,000	4	60	5	400	6	7	35
4994	0.01	2	50,000	3	100	4.5	200	5	4	25
5803	0.01	10.75	50,000	4	200	12	1,000	7	2	80
5624	0.01	2	20,000	9	25	2	150	12	20	12
7427	0.01	2	4,000	2	5	0.2	100	5	70	1.2
5008	0.01	0.5	50,000	6	150	2	150	10	3	12
8573	0.01	3.5	50,000	0.02	200	30	750	0.03	2	225
6247A	0.005	4	100,000	2	350	20	1,500	3	1	120
4427	0.001	3.5	500,000	0.1	300	480	2,800	1	1.2	3,060
5623	0.001	2	200,000	1	200	15	400	1.5	2	90
3880	0.001	12 x 2	100,000	0.3	500	150	1,200	0.5	0.7	1,000
2445	0.001	14.5	500,000	1.5	300	40	3,000	3	2	250
4906	0.001	10.75	500,000	1	400	50	2,000	2	1.5	300
7561	0.0005	4.75	1,000,000	0.2	2,000	750	3,500	0.15	0.2	3,500
8240	2	2	500	n/a	12	n/a	n/a	100,000	30	n/a
8546	1	2	500	10	600	0.15	50	15	0.5	1.1
8375	1	2	500	7,000	4	0.001	10	11,000	100	0.007
8536	1	9	500	750	75	0.007	25	1,250	5	0.04
8579	0.1	10.75	5,000	250	50	0.7	120	400	7	4.4
6996	0.1	2	5,000	1,040	25	0.5	100	2,000	20	3
8330	0.01	2	1,000	100	7	0.3	100	200	50	2.1
5769	0.05	3.5	10,000	8	100	4	250	12	3.5	25
8591	0.001	6	500,000	0.3	400	15	1,000	0.4	1	105
7266	1	0.5	500	0.09	10	0.002	5	140	35	0.006
7305	1	1.75	500	0.08	20	0.005	7.5	125	20	0.017
3464	0.1	1.75	5000	0.8	20	0.5	100	1	20	1.7
4936	0.1	0.5	5000	0.9	20	0.2	50	1	20	0.6
5007	0.01	1.75	20000	0.3	20	1	150	0.5	20	3.5
5405	0.01	0.5	50000	6	150	2	150	10	3	12
8574	0.025	1.75	20,000	100	100	0.5	100	160	4	3
7713-03	1	0.22	100	600	1.5	0.0002	2	1000	250	0.0014
8105-03	0.1	0.22	300	50	10	0.002	6	50	40	0.013
5974	0.1	0.5	5,000	1	20	0.15	50	2	20	0.6
8500	0.1	2	5,000	4	20	0.1	75	10	20	0.6
8445	0.1	2	5,000	4	20	0.1	75	10	20	0.6
8568	0.01	0.5	25,000	0.4	25	0.4	100	0.8	15	2.5
8532	0.01	1	10,000	0.5	25	0.5	100	0.7	15	3
7765	0.01	2	20,000	1	25	0.25	150	1	20	1
6535-03	0.005	0.22	5,000	1.5	20	0.04	30	2.5	20	0.25
